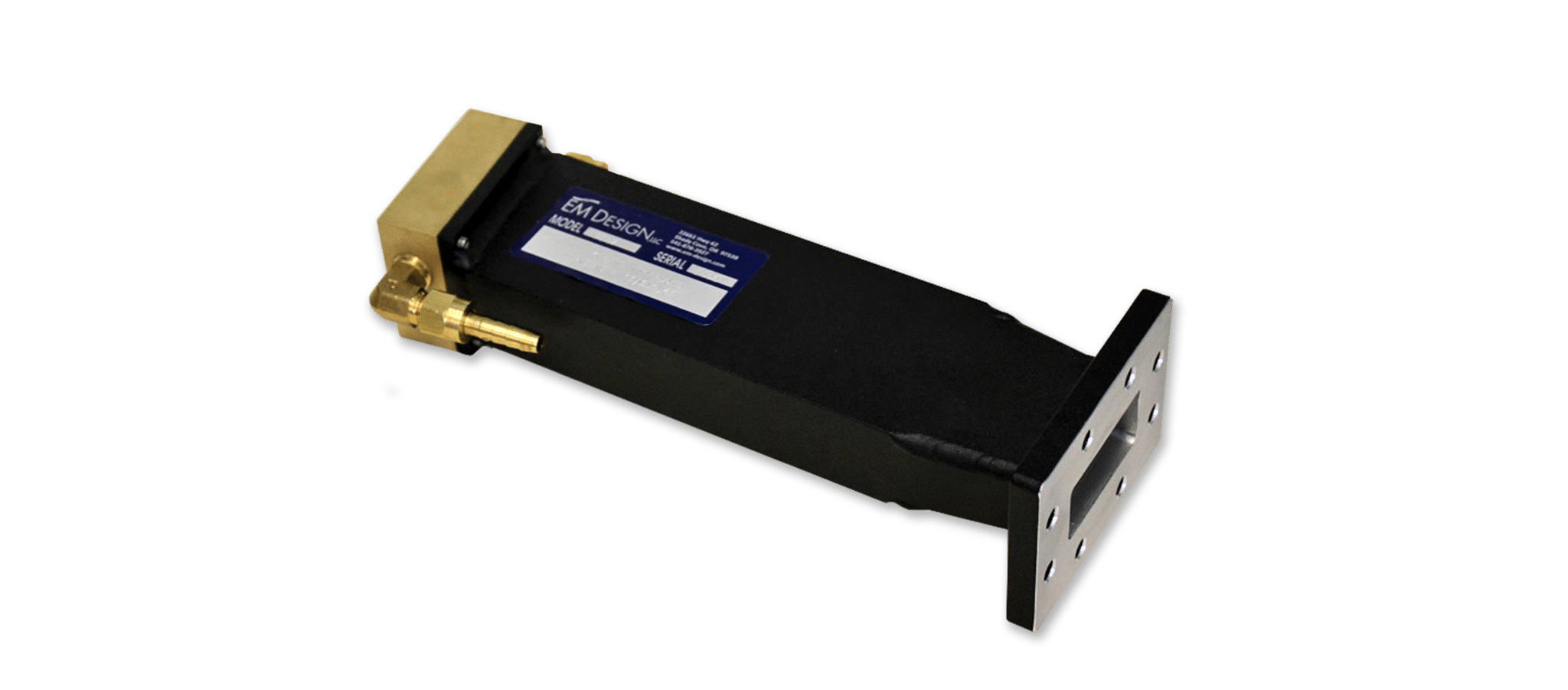

C-Band Waterload 3 MW Peak Power, 1 KW Average Power Model #R187, Patent No. 7,283,014
Unit Specifications
Peak Power
3 MW
Center Frequency
5.712 GHz
Average Power
1 KW (max)
VSWR
1.10 max
Flanges
CPR187F
Water Flow
> 1.5 GPM
Water Temperature
40º C (Nominal)
Gas Pressure
34 PSIG SF 6 @ Peak Power
Length
9.88" (251mm)
Material
Guide Body – Aluminum Water Manifold – Brass & Polypropylene
Water Connection
Brass Elbows (Parker 45º Flare X-48F-6-6)
Overview
This water load is very useful for converting a circulator into an isolator. The broad band performance of the load is especially useful for magnetron applications because it absorbs the spurious signals, as well as the desired fundamental, with equal efficiency.
It is an extremely broadband water load that covers almost the entire bandwidth of the WR187 waveguide.
