EM Design Gasket Seal

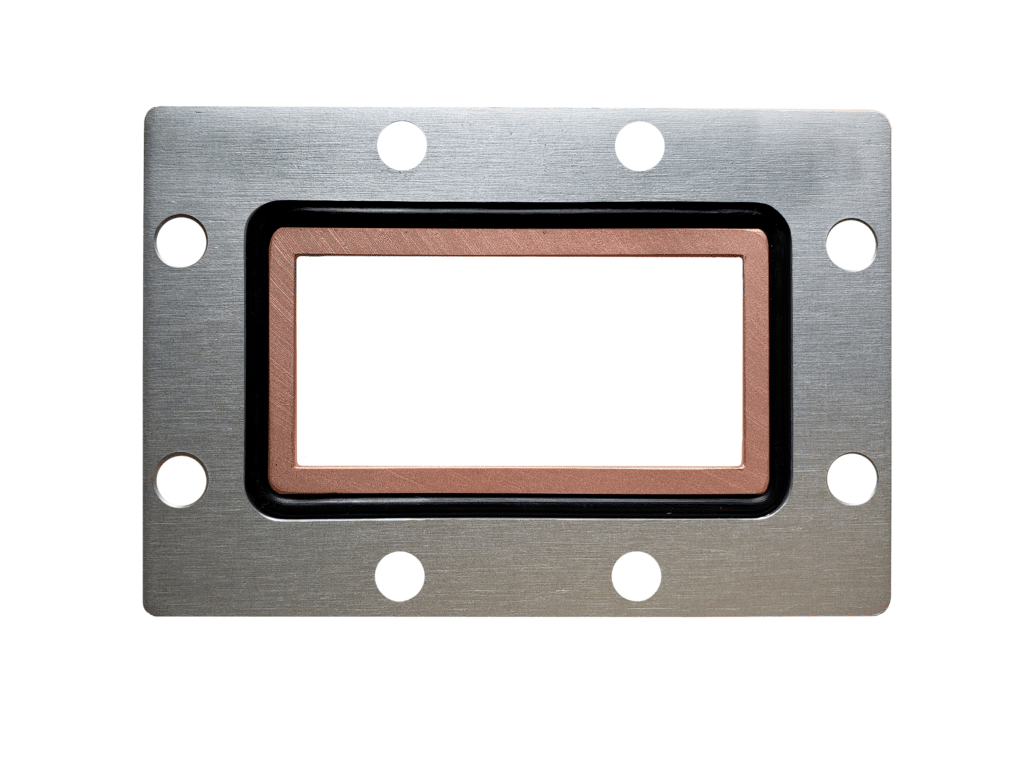

Varian Configuration

Unit Specifications

The nominal 3 mm thick seal is comprised of three distinct elements:

• Outer aluminum section; contains the flange hole pattern and acts as the outer restraint for the o-ring.
• The o-ring; provides the pressure or desired vacuum seal.  And,
• A solid copper inner section; contained within the o-ring perimeter, it serves to provide inside restraint.  The copper section provides a solid contact for waveguide currents and heat transfer.

Overview

The EMDSeal is a unique, patented, mechanism for attaching and sealing high power waveguide flat flanges.  It consists of three separate components; the inner copper component, the outside aluminum piece and the o-ring.  The inner copper component is slightly thicker than the outside aluminum piece.  It ensures that the seal, when clamped between two flat flanges, will provide contacting pressure on the copper component.  The copper component is contained entirely with the o-ring seal and is protected from weather or galvanic effects by the waveguide gas or vacuum.

Especially important to note, is the EMDSeal is designed so that, if necessary, any one of the three components can be replaced.  This provides you with the option of replacing just needed parts, not the entire seal.  Saving you time and money.

This version is of a Varian 8-hole configuration for mating Varian WR284 flat flanges.  CPR 187, 284, 340, 650 and 770 flange sizes are available.

Wavaeguide Gasket, Varian Configuration.PDF

Patent No. 5,765,835 (EMDS V284F)
