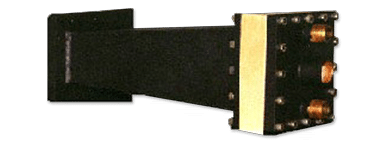

Industrial Waterload 35 KW Average Power Model #RQ430-2.4
Unit Specifications
Average Power
8 KW (max)
Center Frequency
2.4 GHz
Flanges
CPR430F
VSWR
1.10 max
Water Flow
14 GPM
Water Temperature
40º C (Nominal)
Gas Pressure
34 PSIG SF 6 @ Peak Power
Length
13" (330 mm)
Material
Guide Body – Aluminum Water Manifold – Brass & Polypropylene
Water Connection
Brass Elbows (Two 1/2" MPT – One 3/4" FPT)
Overview
This high power water load is designed for average power levels exceeding 10 KW. The broad band performance of the load exceeds that of ceramic, SLAC type loads.
This waterload is designed for the microwave heating frequency range.
