S-Band Distributed 3-Port Isolator Assembly, 8 MW Peak Power, 8 KW Average Power
S-Band Distributed 3-Port Isolator Assembly
8 MW Peak Power, 8 KW Average Power
Model #102647NP-S
Unit Specifications
| Peak Power | 8 MW | Center Frequency | 2.998 GHz |
|---|---|---|---|
| Average Power | 8 KW | ||
| Flanges | CPR284F | VSWR (Port 1) | 1.10 max |
| Water Flow | 3 GPM (minimum) | ||
| Required Water Treatment | Deionized Water | ||
| Water Temperature | 35º & 40ºC (tested & optimized at 38ºC) |
Isolation (Port 2 to Port 1) |
>33 db |
| Gas Pressure | 35 PSIG SF 6 | ||
| Length | 18.8" (478 mm) | Insertion (Port 1 to Port 2) |
<0.30 db |
| Weight | 24 lbs. (10.9 Kg) |
Overview
This Isolator Assembly consists of the EM Design Distributed 3-Port Circulator, without sampling probes, and an EM Design Waterload, Model #R284-3.0.

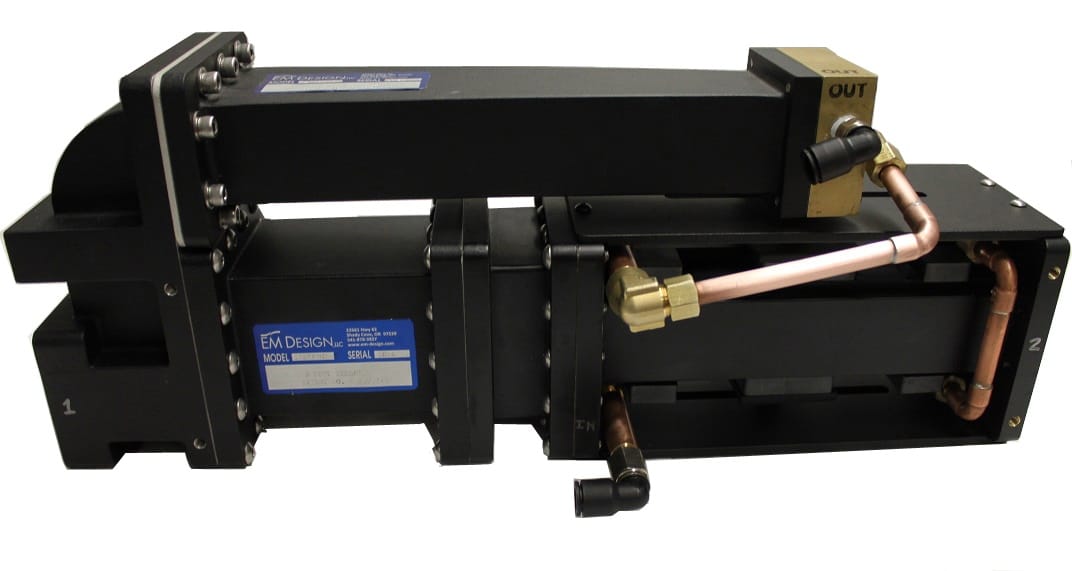

The straight input Port 1 is on the left side and the output Port 2 is shown on the right side of the photograph. The power reflected at Port 2 is absorbed by the load on Port 3.
The high power S-Band circulator is based on EM Design’s unique patented concept and is especially attractive for isolating reflection from resonant loads such as accelerators or other similar devices. This isolator assembly is set for the 2.998 GHz frequency, but can be readily optimized for other frequencies, including 2.856 GHz. Water cooling is connected in series so that the flow is conveyed through the circulator and the attached load.
S Band 3 Port 8kw AVG NOPROBE.PDF
Patent No. 6,407,646
