S-Band Quad Waterload 30 MW Peak Power, 40 KW Average Power Model #RQ284-3.0
Unit Specifications
Peak Power
30 MW
CenterFrequency
2.998 GHz
Average Power
8 KW (max)
VSWR
1.10 max
Flanges
CPR284F (tapped)
Water Flow
14 GPM
Frequency Band
2.8 to 3.2 GHz
Water Temperature
40º C (Nominal)
VSWR
1.20 max
Gas Pressure
34 PSIG SF 6 @ Peak Power
Length
12.25" (311 mm)
Material
Guide Body – Aluminum Water Manifold – Brass & Polypropylene
Water Connection
Brass Elbows (90º)
1/2" Poly – 3/8" MPT
2 pieces
Overview
This high power water load with a CPR284 flange, is very useful for applications above 10 KW average power. The broad band performance of the load out absorbs harmonic signals, as well as the desired fundamental.
Model RQ284-3.0 covers a significant bandwidth in the WR284 waveguide. This quad water load can be optimized at the 2.856 GHz.

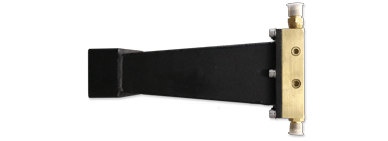

S-Band Quad Waterload
30 MW Peak Power, 40 KW Average Power
Model #RQ284-3.0
Unit Specifications
(Nominal)
Overview
This high power water load with a CPR284 flange, is very useful for applications above 10 KW average power. The broad band performance of the load out absorbs harmonic signals, as well as the desired fundamental.
Model RQ284-3.0 covers a significant bandwidth in the WR284 waveguide. This quad water load can be optimized at the 2.856 GHz.
