Specializing in the design and fabrication of high power microwave waveguide components

Distributed 3-Port Circulators & Isolators

ProductModel#Ciculator
/Isolator
FrequencyPeak PowerAVG PowerVSWR (Port 1)Isolation Insertion
102885Circulator2.856 GHz8 MW35 KW1.10 maxPort 2 to Port 1
>35 dB
<0.25 dB
3 Port Circulator

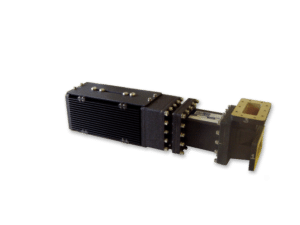

102483-BBACirculator2.7 to 3.05 GHz5 MW1.7 KW1.10 maxPort 3 to Port 1
>26 db
<0.30 db

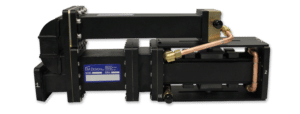

3 Port Isolator 102647NP-SIsolator2.998 GHz8 MW8 KW1.10 maxPort 2 to Port 1
>35 db
<0.30 db
3 Port Isolator

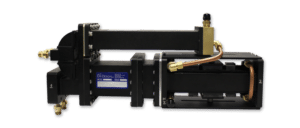

102647Isolator2.998 GHz8 MW8 KW1.10 maxPort 2 to Port 1
>35 db
<0.30 db
3 Port Isolator

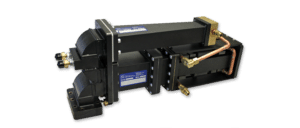

102647AIsolator2.998 GHz8 MW8 KW1.10 maxPort 2 to Port 1
>35 db

<0.30 db


102483CCirculator2.998 GHz8 MW10 KW1.10 maxPort 2 to Port 1
>35 db

<0.30 db
3 Port Isolator

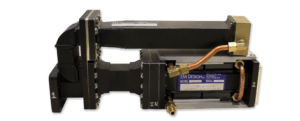

102788SIsolator5.712 GHz3 MW1 KW1.10 maxPort 2 to Port 1
>35 db
<0.35 db
